73APT-100K-SR Series Resistor Kelvin Probe
Product Specifications:
Mechanical:

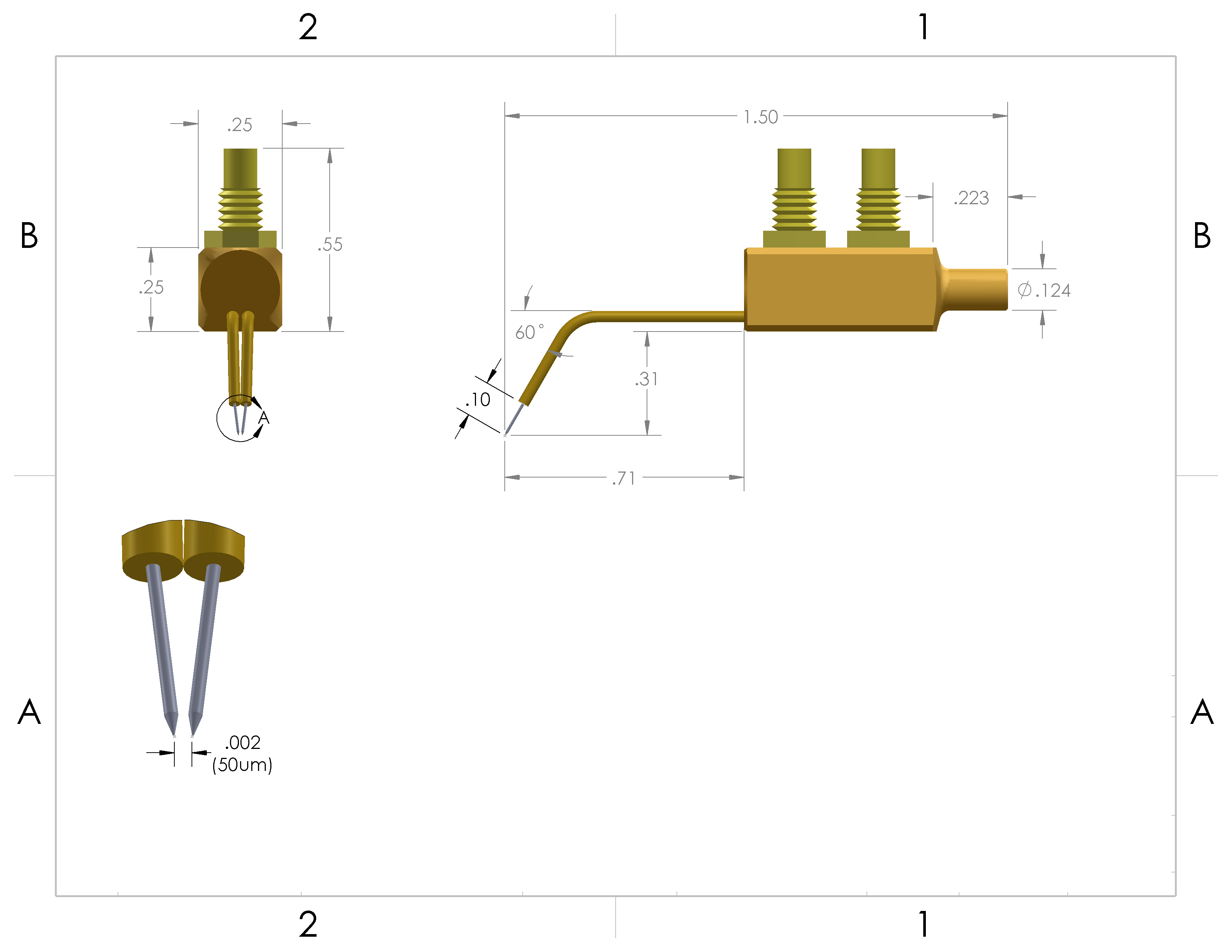

Material: Type II Gold plated brass/copper Connectors: Two SSMC connectors, with each being connected to one of the two semi-rigid coaxial probes creating a True Kelvin connection. The SSMC positioned furthest from the probe has a series resistor (SM-603 series - 1/16 watt) between the probe and connector mounted within the body. The probe mounting shank is: 0.124" ~ 0.125". The probes of the 73APT-100K are not replaceable due to the co-planarity issues with the Kelvin contact. The typical probe contact co-planarity is within 3-5 microns.
Electrical:
Current leakage: < 10 fA. Frequency: > 150 MHz Capacitance (Guarded): < 10 fF Impedance: 50 Ohm Power Handling: > 125 Watts @ 18-21 Deg. C Voltage Rating: > 250 Volts RMS @ sea level
The 73APT-100K Kelvin Series probe can be ordered with custom configurations including:
- Series resistors
- Custom bends
- Custom mounting shanks sizes and configuration
- SMA connectors
- Custom UT-047, Semi-rigid coaxial with BeCu core
- Radii and pitch (pitch is the distance between the two probe tips at the radius)
Specifications
Less than 10 fA resolution.
Probe pitch (distance between probes) can be ordered from 12 to 100 um.
Very low parasitic capacitance design.
(*Specify radius, pitch and resistor value upon ordering)
