DIFFERENTIAL CALIBRATION SUBSTRATES
DIFFERENTIAL CALIBRATION SUBSTRATES The GGB Industries, Inc., line of DIFFERENTIAL CALIBRATION SUBSTRATES allows the user to calibrate any GGB Industries, Inc., microwave Picoprobe® at the probe tip. The underlying principal of the calibration of a measurement system is to provide accurate known standards to which the measurement system can be connected. The GGB Industries, Inc., line of calibration substrates is such a standard. Each calibration substrate contains highly precise elements for calibrating out the unavoidable errors and losses in a microwave network analyzer, its associated cabling, and the microwave probe to ensure accurate on-wafer testing.
- Supports Precise SOLT, LRL and LRM calibrations
- Includes CalKit software for easy loading to Network Analyzer
- Pitch range from 45 to 1325 microns
- Suitable for all Picoprobes® from DC to 110 GHz
- Available for GSGSG , GSSG, and SGS Footprints
- Load standards individually trimmed to 0.25% accuracy
- 25 mil (635 micron) thick alumina substrate
FIGURE 1
Our accurate, easy to use calibration substrates, calibration coefficients, and detailed instructions allow you to precisely calibrate the measurement system to the probe tips.
The typical elements for calibrating a microwave measurement system consists of opens, shorts, 50 ohm loads, and throughs. Our precision crafted calibration substrates, when properly used, assure you of accurate on-wafer test results.
All load standards are individually inspected and trimmed to within 0.25% accuracy using NIST traceable equipment.
Easy to use step by step instructions are provided for use with Agilent ENA four port network analyzers and Agilent PNA network analyzers with PLTS software.
<

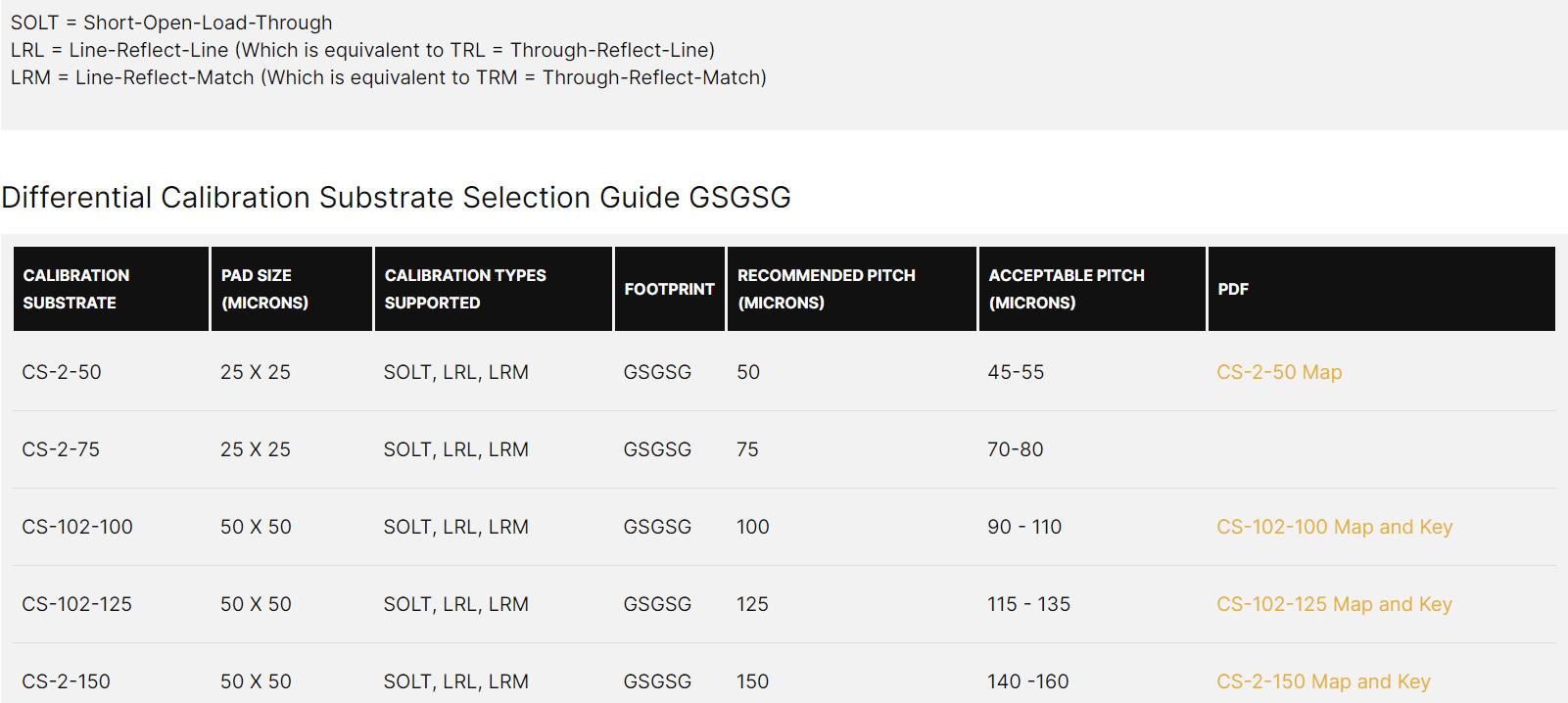

Differential Calibration Substrate Selection Guide Calibration
SubstratePad Size (microns) Calibration
Types
SupportedFootprint Recommended Pitch
(microns)
Acceptable Pitch
(microns)CS-2-50 25 X 25 SOLT, LRL
LRMGSGSG 50 45-55 CS-2-75 25 X 25 SOLT, LRL
LRMGSGSG 75 70-80 CS-2-100 50 X 50 SOLT, LRL
LRMGSGSG 100 90 - 110 CS-2-125 50 X 50 SOLT, LRL
LRMGSGSG 125 115 - 135 CS-2-150 50 X 50 SOLT, LRL

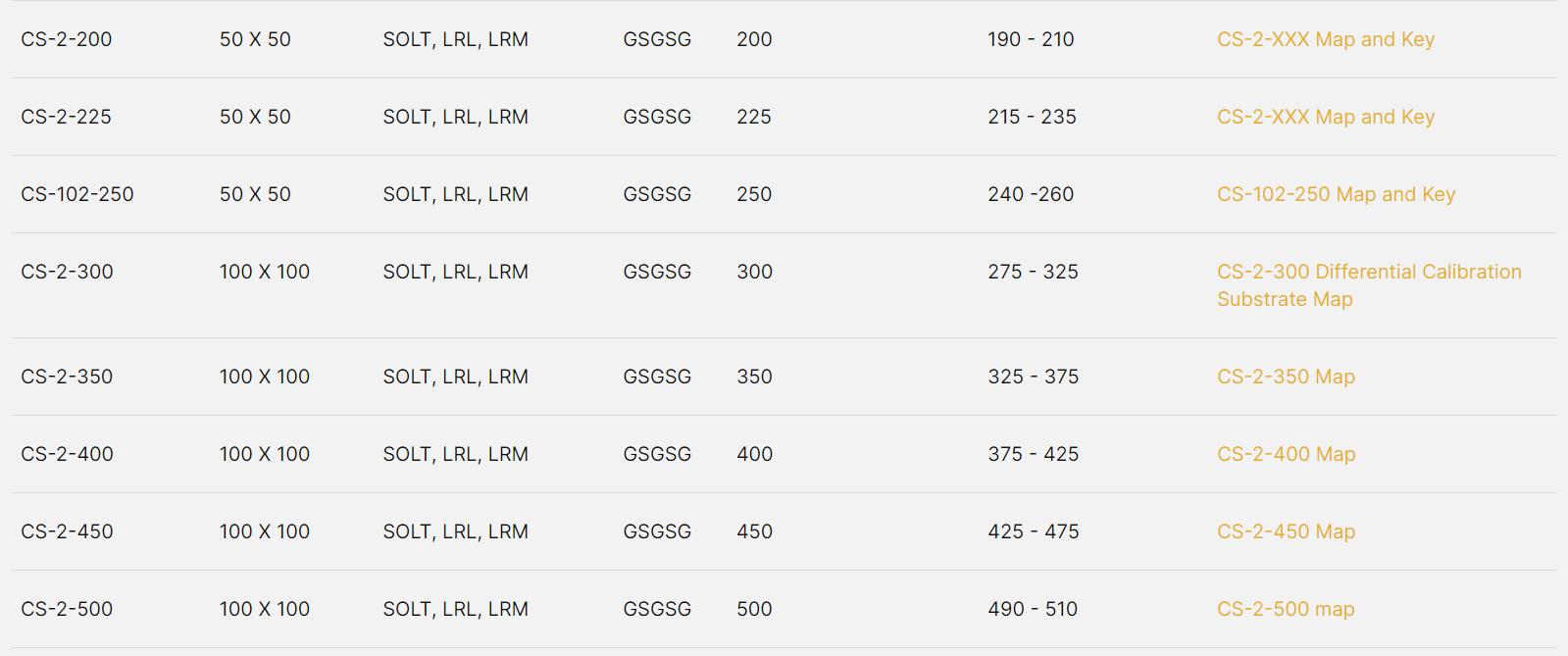

LRMGSGSG 150 140 -160 CS-2-200 50 X 50 SOLT, LRL
LRMGSGSG 200 190 - 210 CS-2-225 50 X 50 SOLT, LRL
LRMGSGSG 225 215 - 235 CS-2-250 50 X 50 SOLT, LRL
LRMGSGSG 250 240 -260 CS-2-300 100 X 100 SOLT, LRL
LRMGSGSG 300 275 - 325 CS-2-350 100 X 100 SOLT, LRL
LRMGSGSG 350 325 - 375 CS-2-400 100 X 100 SOLT, LRL
LRMGSGSG 400 375 - 425 CS-2-450 100 X 100 SOLT, LRL
LRMGSGSG 450 425 - 475 CS-2-500 100 X 100 SOLT, LRL

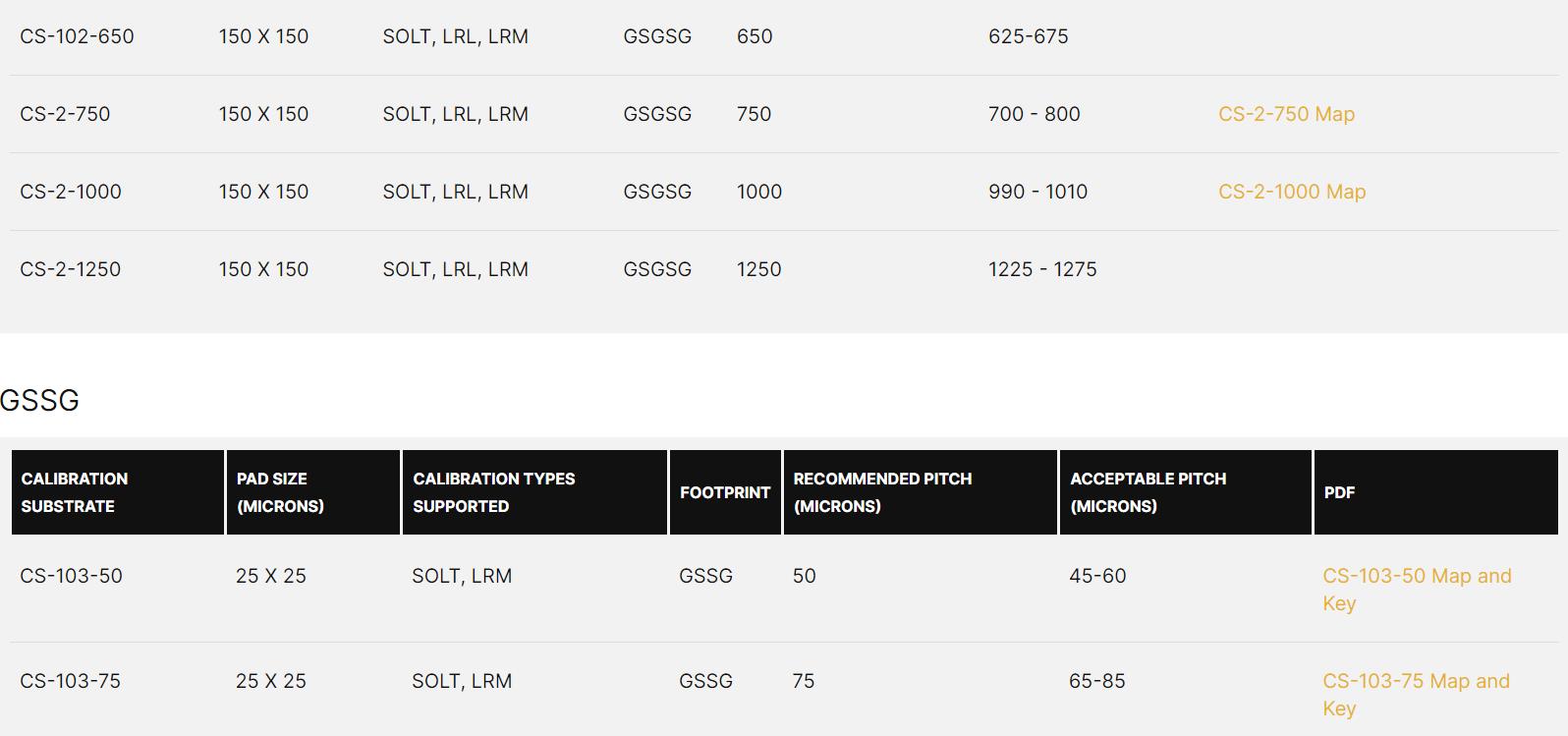

LRMGSGSG 500 490 - 510 CS-2-750 150 X 150 SOLT, LRL
LRMGSGSG 750 700 - 800 CS-2-1000 150 X 150 SOLT, LRL
LRMGSGSG 1000 990 - 1010 CS-2-1250 150 X 150 SOLT, LRL
LRMGSGSG 1250 1225 - 1275 FIGURE 2
Calibration
SubstratePad Size (microns) Calibration
Types
SupportedFootprint Recommended Pitch
(microns)
Acceptable Pitch

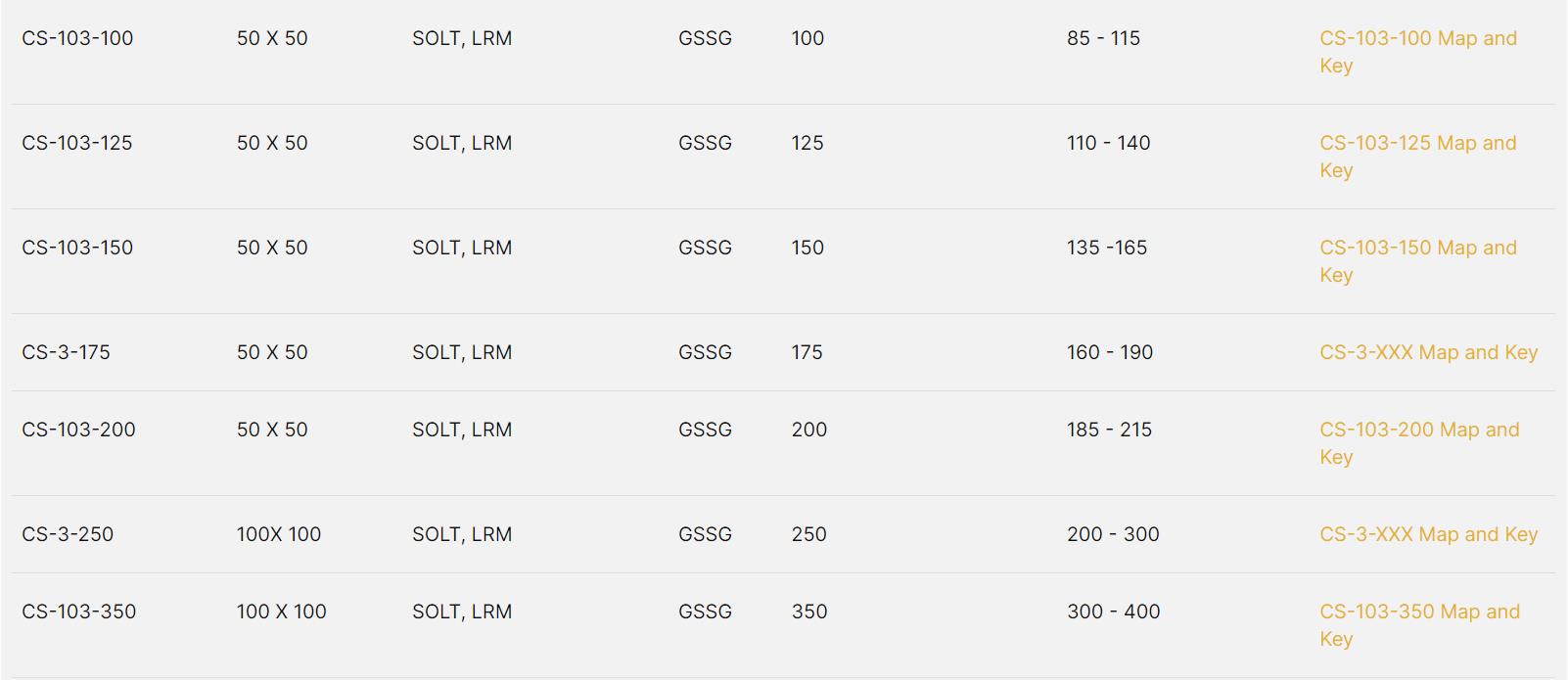

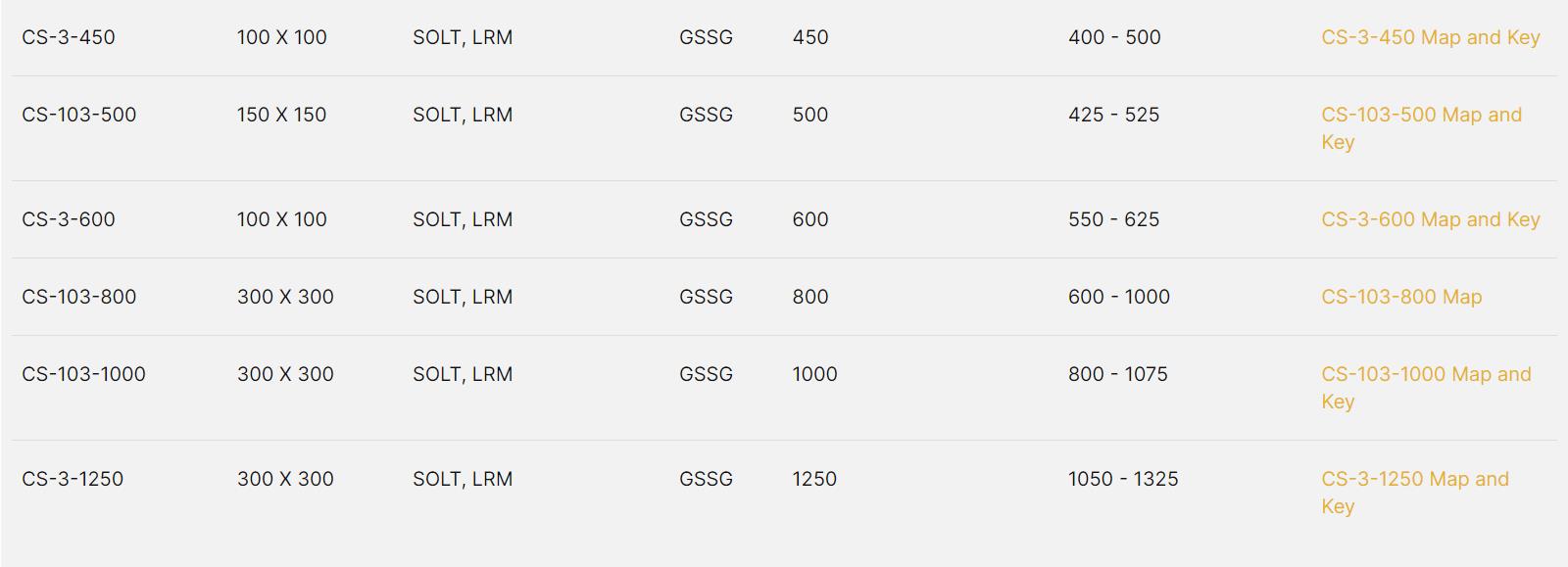

(microns)CS-3-50 25 X 25 SOLT, LRM GSSG 50 45-60 CS-3-75 25 X 25 SOLT, LRM GSSG 75 65-85 CS-3-100 50 X 50 SOLT, LRM GSSG 100 85 - 115 CS-3-125 50 X 50 SOLT, LRM GSSG 125 110 - 140 CS-3-150 50 X 50 SOLT, LRM GSSG 150 135 -165 CS-3-175 50 X 50 SOLT, LRM GSSG 175 160 - 190 CS-3-200 50 X 50 SOLT, LRM GSSG 200 185 - 215 CS-3-250 100X 100 SOLT, LRM GSSG 250 200 - 300 CS-3-350 100 X 100 SOLT, LRM GSSG 350 300 - 400 CS-3-450 100 X 100 SOLT, LRM GSSG 450 400 - 500 CS-3-500 150 X 150 SOLT, LRM GSSG 500 425 - 525 CS-3-600 100 X 100 SOLT, LRM GSSG 600 550 - 625 CS-3-800 300 X 300 SOLT, LRM GSSG 800 600 - 1000 CS-3-1000 300 X 300 SOLT, LRM GSSG 1000 800 - 1075 CS-3-1250 300 X 300 SOLT, LRM GSSG 1250 1050 - 1325 FIGURE 3 Calibration
SubstratePad Size (microns) Calibration
Types
SupportedFootprint Recommended Pitch
(microns)
Acceptable Pitch

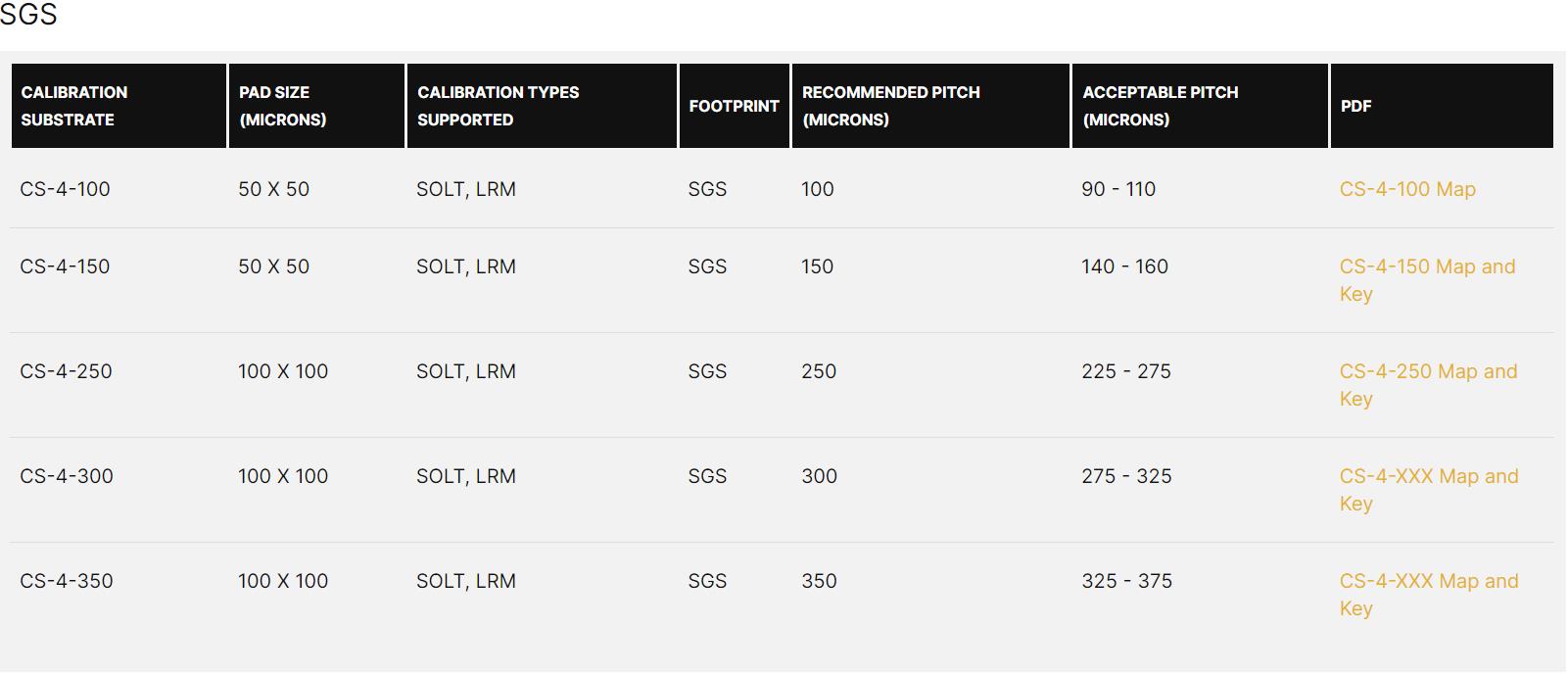

(microns)CS-4-100 50 X 50 SOLT, LRM SGS 100 90 - 110 CS-4-150 50 X 50 SOLT, LRM SGS 150 140 - 160 CS-4-250 100 X 100 SOLT, LRM SGS 250 225 - 275 CS-4-300 100 X 100 SOLT, LRM SGS 300 275 - 325 CS-4-350 100 X 100 SOLT, LRM SGS 350 325 - 375 FIGURE 4 * SOLT = Short-Open-Load-Through
LRL = Line-Reflect-Line
LRM = Line-Reflect-Match
Standard Calibration Substrate Selection Guide | |||||
---|---|---|---|---|---|
Calibration Substrate | Pad Size (microns) | Calibration Types Supported | Footprint | Pitch Range Recommended (microns) | Pitch Range Acceptable (microns) |
CS-5 | 50 X 50 | SOLT, LRL, LRM | GSG | 75 - 250 | 75 -250 |
CS-9 | 100 X 100 | SOLT, LRL, LRM | GSG | 250 - 600 | 150 - 600 |
CS-10 | 150 X 150 | SOLT, LRM | GSG | 600 - 1250 | 225 - 1250 |
CS-18
| 300 X 300 | SOLT, LRM | GSG | 1250 - 2540 | 500 - 2540 |
FIGURE 5 |
CS-8 | 50 X 50 100 X 100 150 X 150 | SOLT, LRM | GS, SG | 50 - 200 | 50 -300 |
---|---|---|---|---|---|
CS-14 | 100 X 100 | SOLT, LRM | GS, SG | 200 - 400 | 150 - 600 |
CS-11 | 150 X 150 | SOLT, LRM | GS, SG | 400 - 1250 | 175 - 1250 |
CS-17 | 300 X 300 | SOLT, LRM | GS, SG | 750 - 2540 | 450 - 2540 |
FIGURE 6 |
Special Calibration Substrate Designed For Use Above 110 GHz | |||||
---|---|---|---|---|---|
Calibration Substrate | Pad Size (microns) | Calibration Types Supported | Footprint | Pitch Range Recommended (microns) | Pitch Range Acceptable (microns) |
CS-15 | 25 X 25 | SOLT, LRL, LRM | GSG | 40 - 150 (SOLT) 30 - 150 (LRL) | 40 - 150 |
FIGURE 7 | |||||
* SOLT = Short-Open-Load-Through LRL = Line-Reflect-Line (Which is equivalent to TRL = Through-Reflect-Line) LRM = Line-Reflect-Match (Which is equivalent to TRM = Through-Reflect-Match) |
