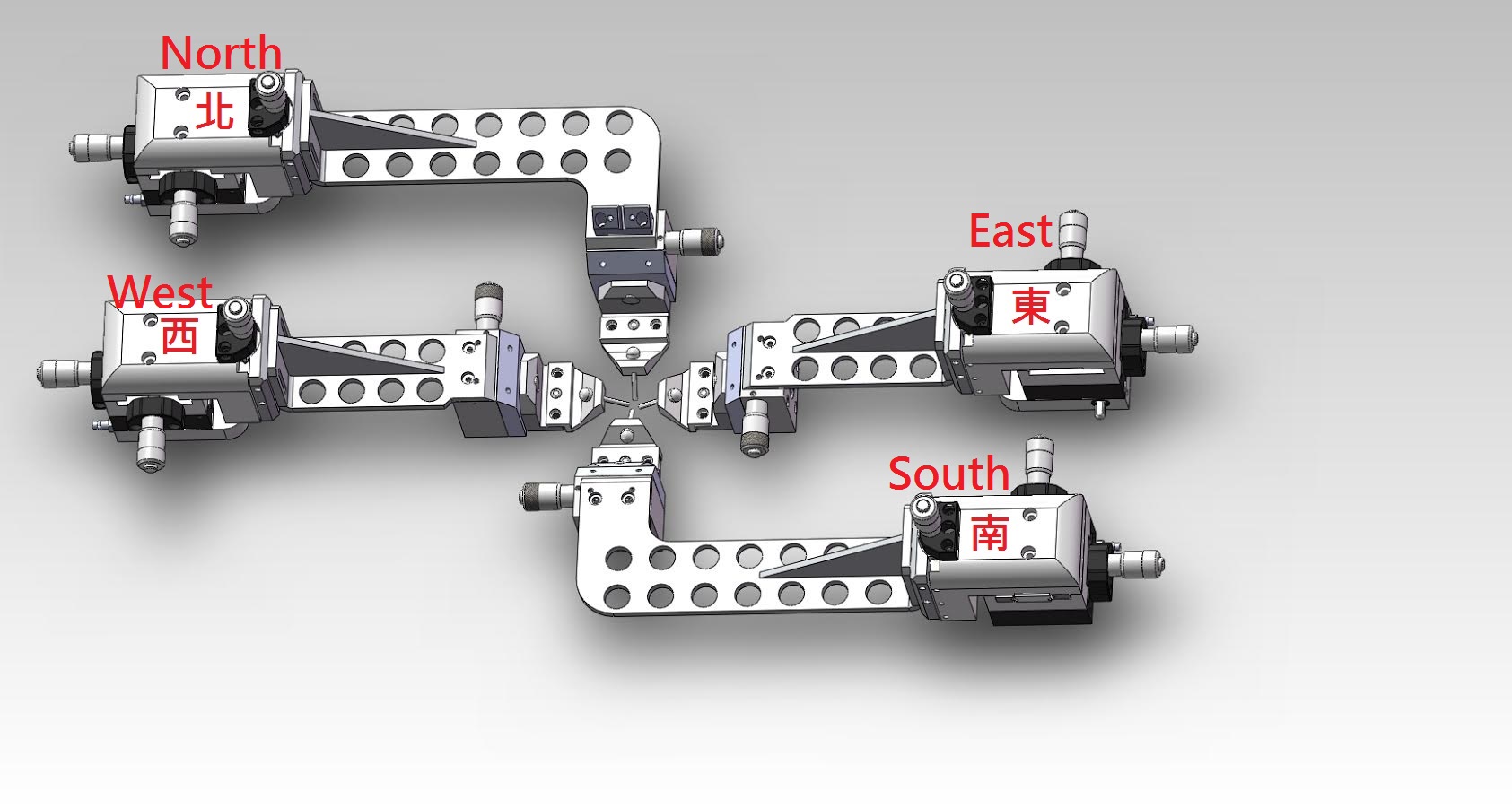

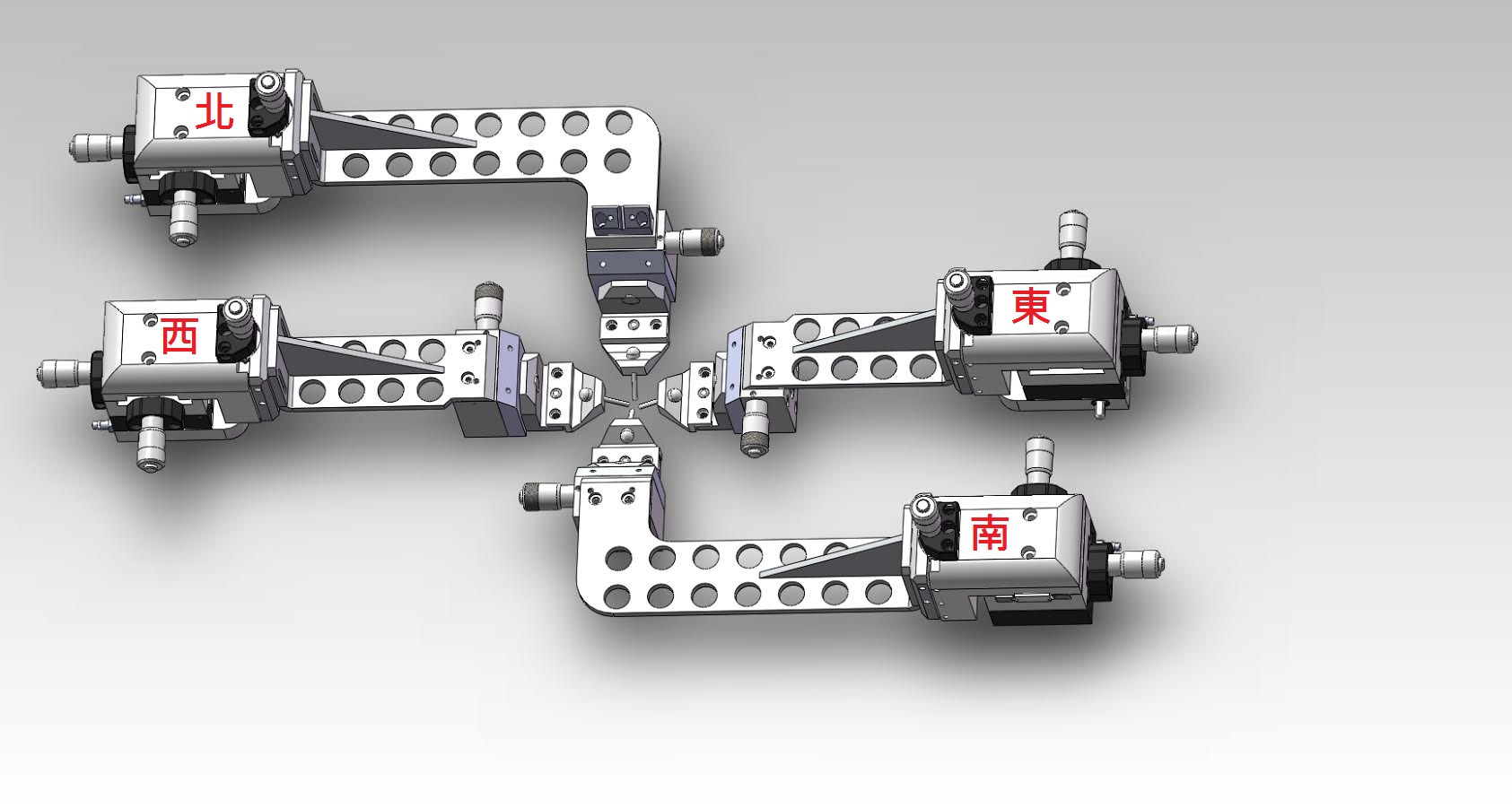

RF-60 高頻探針座 (產品編號:RF-60)
Specification:
1.X-Y-Z 移動行程: 12mm x 12mm x 12mm,線性移動
2.線性移動解析:0.7 μm (100 TPI)
3.Dimension: 112mm(W)x86mm(D)x108mm(H)
4.重量 : 650 grams
5.磁性反轉底座專利證號:M306330
6.搭配GGB or Cascade RF tip(40GHz～110GHz)
