GGB Model 50A 高頻探針
1.GGB 50A-GS-150-DP
2.GGB 50A-SG-150-DP
3.GGB 50A-GSG-150-DP

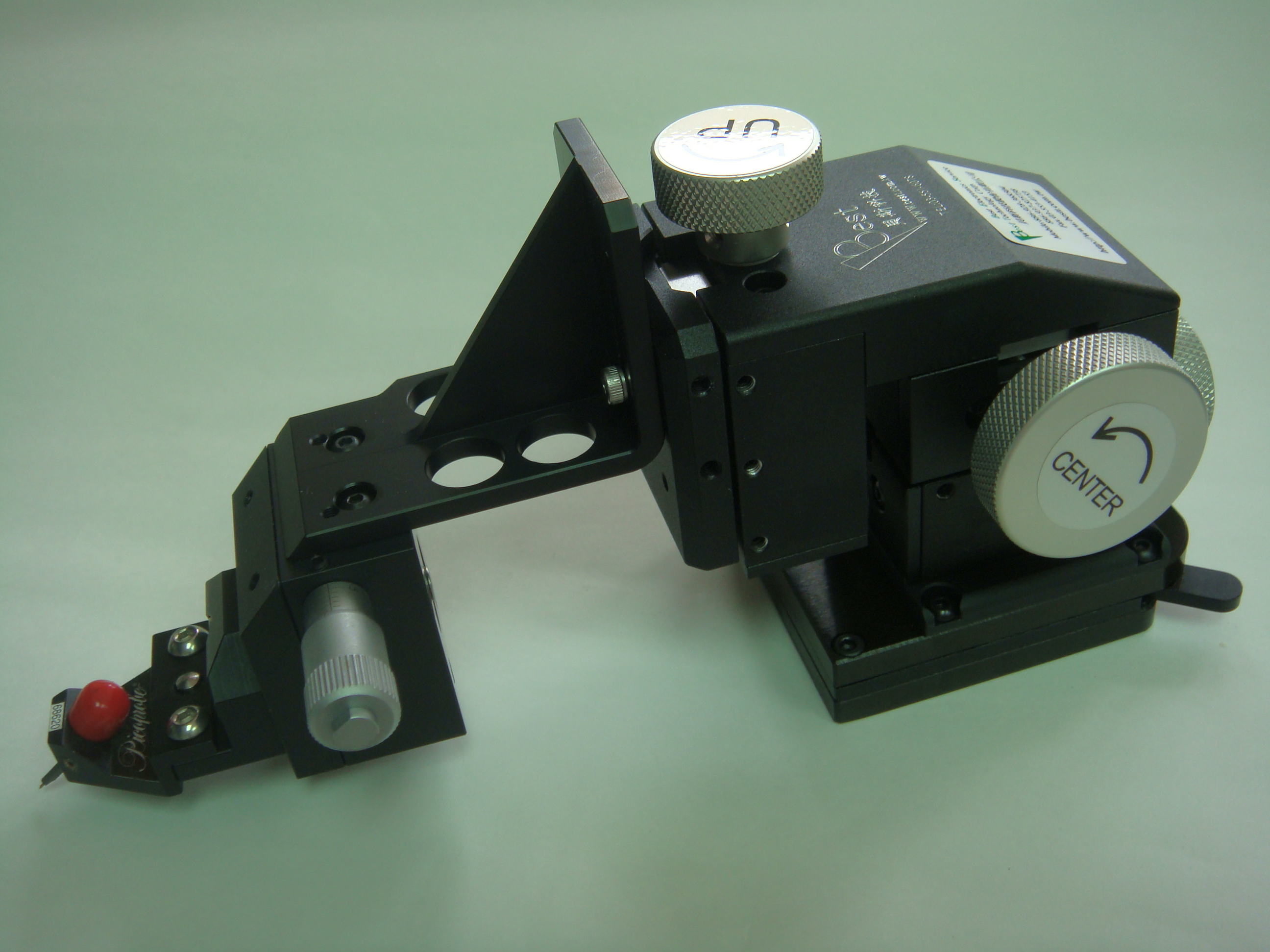

MODEL 50A
probe sets new standards in microwave probing performance. Using low loss coaxial techniques, the Model 50A achieves an insertion loss of less than 1.0 db and a return loss of greater than 18 db through 50 GHz
Features
- Durable
- DC to 50 GHz
- Any pitch from 25 to 1250 microns
- Insertion loss less than 1.0 db
- Return loss greater than 18 db
- Measurement repeatability -80db
- Individually spring loaded contacts
- BeCu or Tungsten tips available
- Variety of Footprints
- Patented coaxial design
- Available in thirteen styles
- Custom configurations available

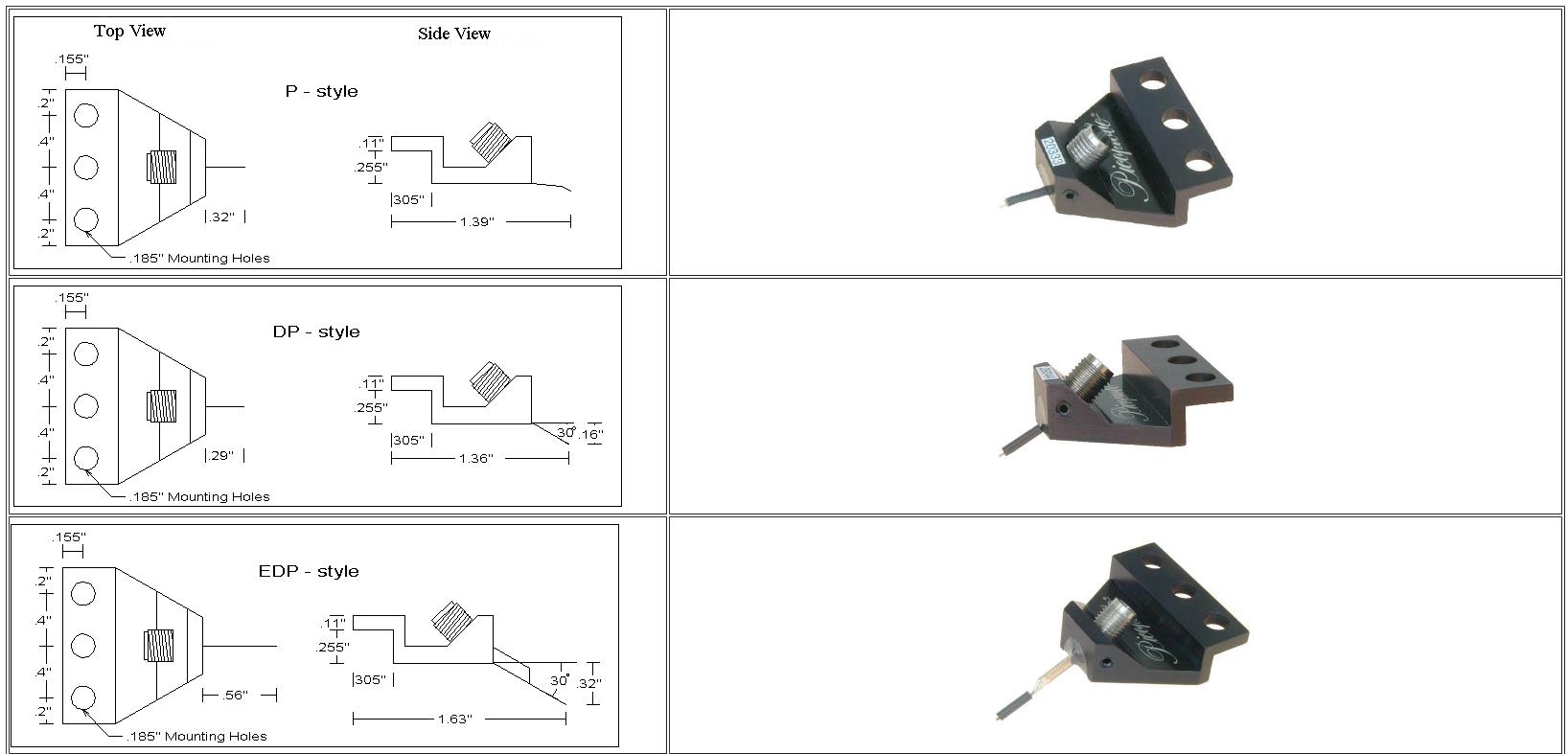

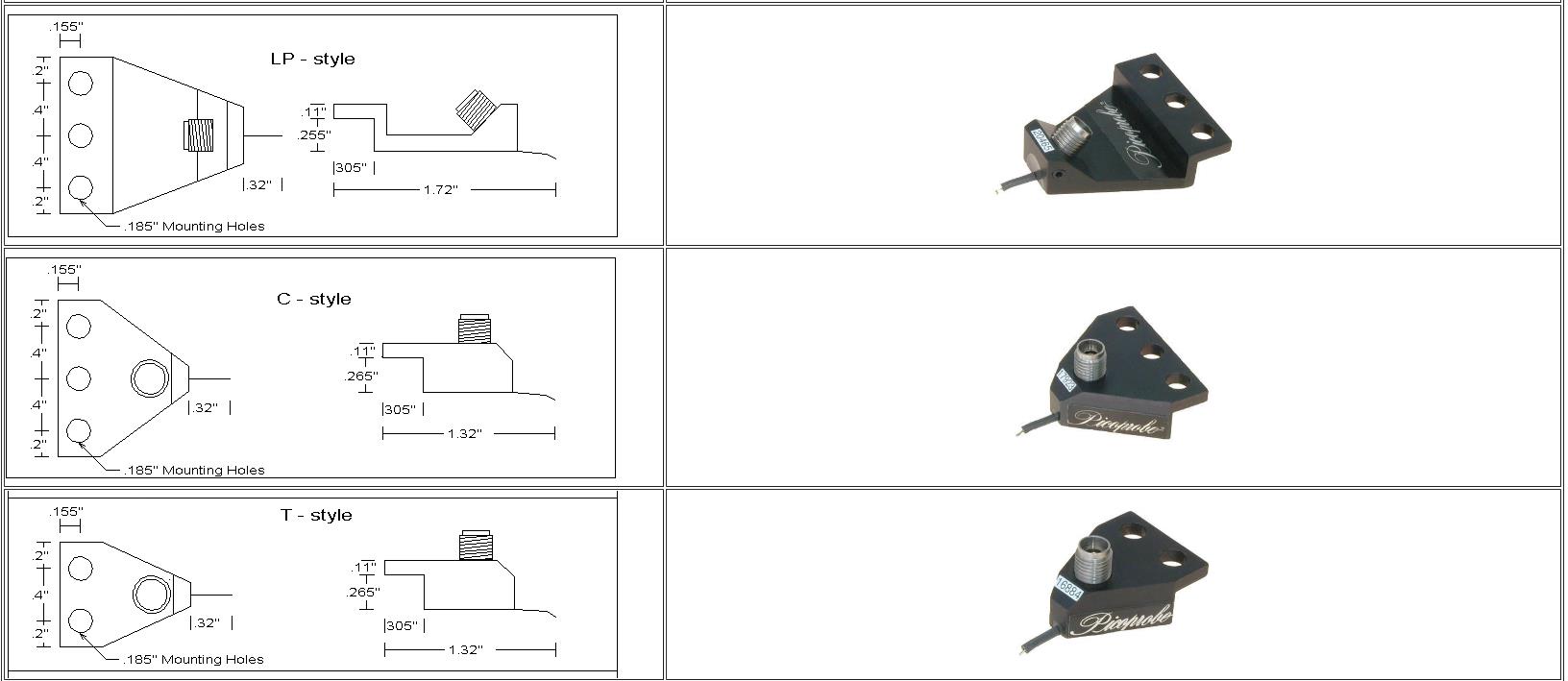

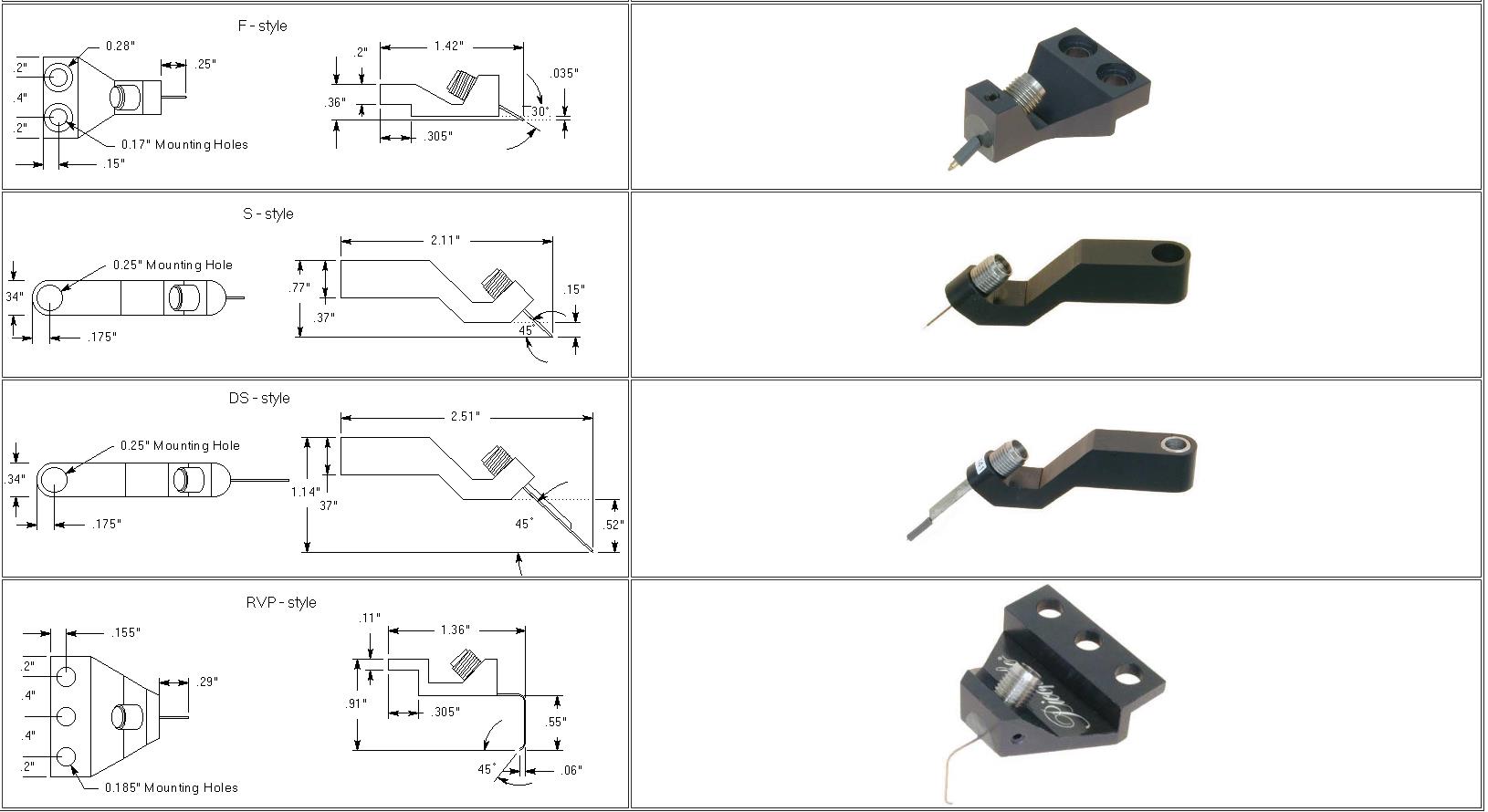

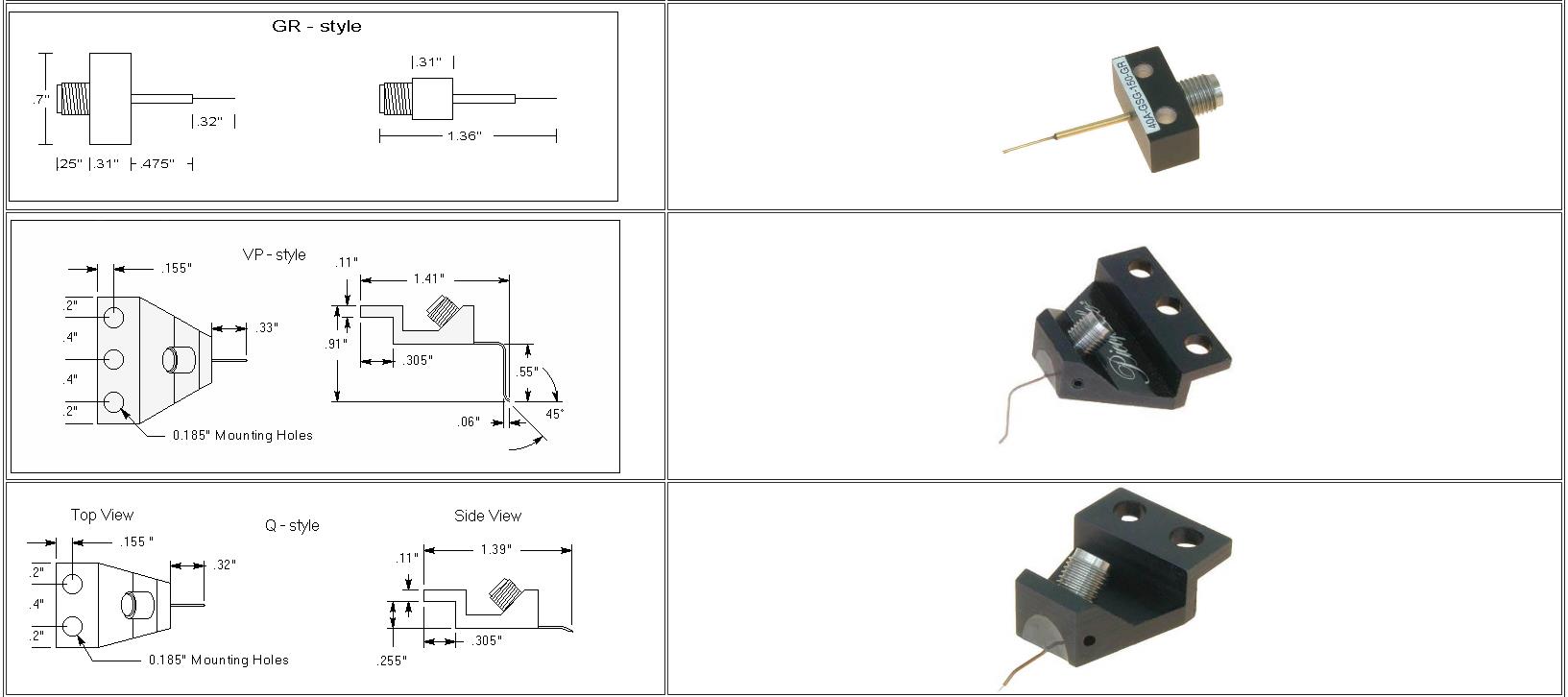

Mounting Style: T, C, GR, P, DP, EDP, LP, Q, F, S, DS, VP, or RVP
