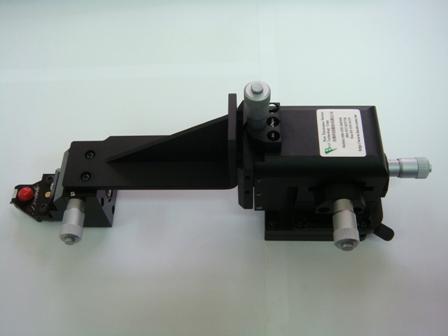

GGB Model 67A 高频探针

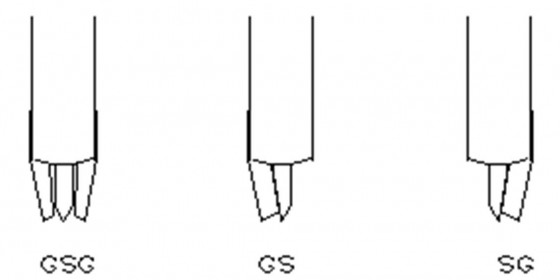

1.GGB 67A-GS-150-DP
2.GGB 67A-SG-150-DP
3.GGB 67A-GSG-150-DP
Features
- Coplanar probe tips
- Any pitch from 50 to 1250 microns
- Durable
- DC to 67 GHz
- Insertion loss less than 1.1db
- Return loss greater than 14db
- Measurement repeatability -80db
- Individually spring loaded contacts
- BeCu or Tungsten tips available
- Variety of Footprints
- Patented coaxial design
- Available in thirteen styles
- Custom configurations available
Mounting Style: T, C, GR, P, DP, EDP, LP, Q, F, S, DS, VP, or RVP
