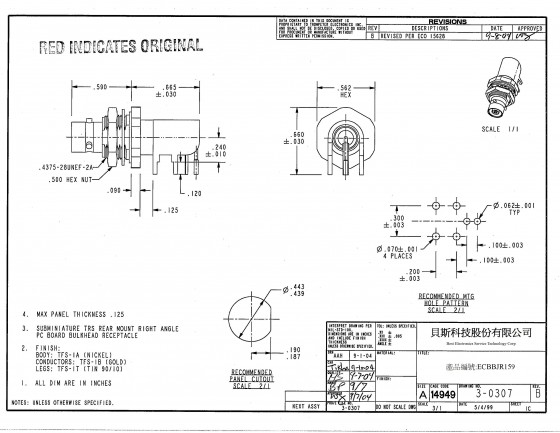

Triaxial(母) to Triaxial-可銲接印刷電路板Adapter (產品編號:ECBBJR159)

Specifications:

1.Impedance:50 Ohm

2.Max Frequency:500 MHz

3. Contact Plating:Gold

4.Body Plating:Nickel(鎳)

5. Body Material:Brass(黃銅)

6.Triaxial(公) signal to Triaxial(母) signal

7. Triaxial(公) guard to Triaxial(母) guard

7.Triaxial(公) ground to Triaxial(母) ground

Triaxial Adapter Type:

1.Triaxial(母) to Triaxial(母) 可夾板 Adapter(產品編號:EBJ73)

2.Triaxial(公) to Coaxial(母) Adapter(產品編號:EPL75)

3.Triaxial(母) to Coaxial(母) Adapter(產品編號:EBJ74)

4.Triaxial(母) to Coaxial(公) Adapter(產品編號:EPL20)

5.Triaxial (1公) to Trixial (2母) Apapter(產品編號:EBN73)

6.Triaxial(母) to 可焊接(產品編號:EAD72)

7.Triaxial(TNC母) to Triaxial(2母)-Apapter(產品編號:EBN83)

8.Triaxial(母) to Triaxial-可銲接印刷電路板Adapter(產品編號:ECBBJR159)

9.Triaxial(母) to 可焊接PCB-Adapter(產品編號:ECBBJ79)

10.Triaxial(母) to Triaxial-可銲接印刷電路板Adapter (產品編號:ECBBJR74)
